Propane lantern, stove & heater manufacturers Coleman – 1975 – present

coleman5114b279knapke coleman5114b279burnerandglobeknapke

coleman5114b279boxlabelknapke

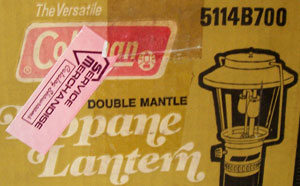

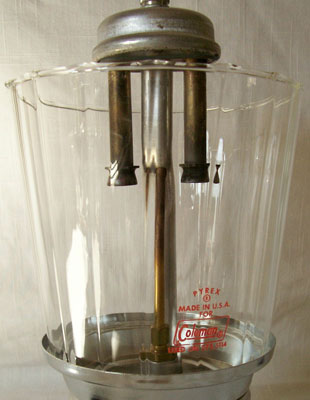

This Model 5114B700 two mantle propane lantern was made for Service Merchandise (lower image) and possibly other retailers. It came with a special “fluted” globe (upper right image) that lacked frosted vertical bars. The fluted globe was also used on Model 275. This lantern, dated February 1979, is in Glenn Knapke’s collection. The LP cylinder isn’t present(upper left image). Please contact me if you have a Model 5114 with a fluted globe.

colemancanada5419a701jan80tucker

This Model 5419A701 propane lantern was made by Coleman – Toronto
in January, 1980.
In addition to instructions on the collar in English and French
a number of parts are listed there.
This lantern is in Tim Tucker’s collection.

coleman5418b700dec79stovemarsh

Coleman made three slightly different versions of this stove in the 1970’s-’80’s,
all utilizing the propane canister to form the third leg.
This one, Model 5418B700, is date stamped Dec. 1979.
These stoves are surprisingly sturdy and stable.
The two legs fold under the stove and there is a plastic cap (not visible here)
to protect the canister connection to the stove.

coleman5443heaterlenfield coleman5445heaterlenfield

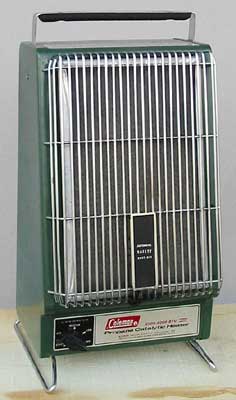

Coleman propane heater Models 5443, Focus 3 (left), and 5445 (right)
The Focus 3 is undated while the 5445 is dated Sept. 1981.
The Model 5445 holds two propane canisters.
These heaters are in Ron Lenfield’s collection.

colemanfocus5radiantheater1191potter

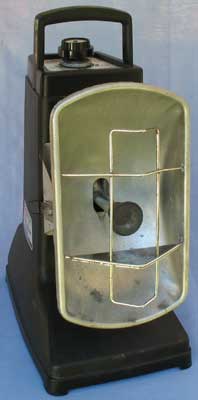

This Coleman Model 5440-701
Focus 5 Propane Radiant Heater
is rated at 3,500 – 5000 BTU adjustable input.
This heater, in Steve Potter’s collection,
is date stamped Nov. 1991

coleman5155propanelanternpage coleman5155propanepage2

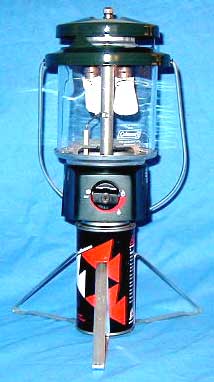

Coleman made the 5155 portable propane camp lantern (left)
while the 5155 J version (right) was made for the Japanese market.
The Japanese version uses an iso-butane fuel canister.
This is a two mantle lantern with electronic ignition.
Both are in Brien Page’s collection.
The four feet swivel under the base of the lantern on the left for transporting.

coleman5152may85stendahl

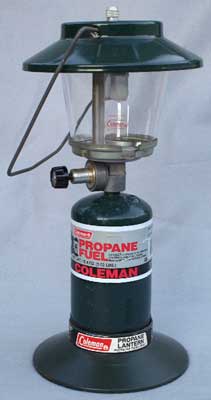

This Model 5152 Coleman propane lantern
is date stamped May 1985.
John Stendahl, whose collection this is in,
notes that the propane bottle
is 5103A164 and is date stamped April 1992.

coleman5179apr85morris

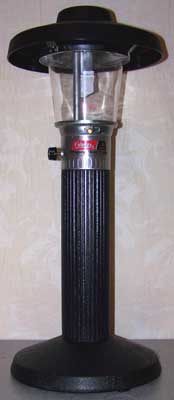

This Coleman Model 5179 Propane Yard Light
is date stamped April, 1985.
It is in John Morris’s collection.

colemancanada5429701nov86giguere2

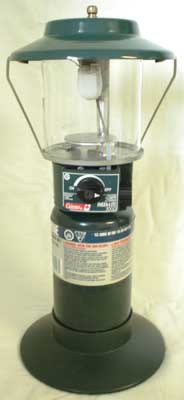

Coleman Canada made this Model 5429-701 one mantle lantern
that is date stamped Nov. 1986.
This lantern, in André Giguere’s collection,
is also identified as Insta-Lite 2000 on the collar.
The lantern has a Piezo ignitor.

coleman5340700june88unfiredstendahl

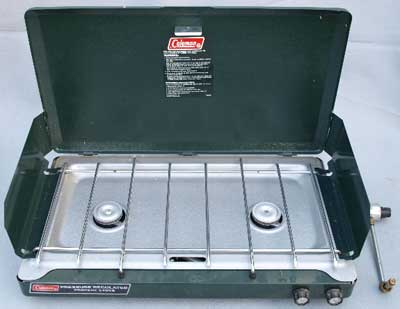

This Coleman Model 5340-700 stove,
in John Stendahl’s collection, is unfired.
It is date stamped June 1988.
The wind screens are attached to the grate,
rather than the lid,
and fold down over the grate for storage.

coleman5154b700stendahl

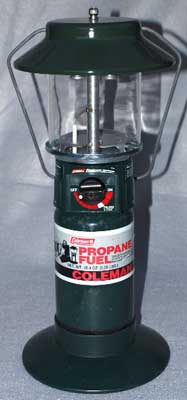

Model 5154B700 lantern is a two mantle model
with electronic ignition.
This lantern, in John Stendahl’s collection, is undated
but the paperwork that came with this unfired lantern is dated 1990.

coleman5130700kennison

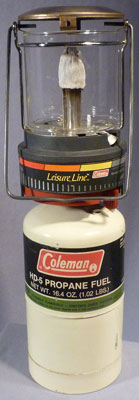

Model 5130-700 was part of Coleman’s Leisure Line.
The paperwork with this undated lantern was printed in February, 1991.
The orange plastic lever under the bail
rotates to the left to increase brightness.
This lantern, in Suzanne and Dana Kennison’s collection,
takes a No. 51 mantle.

coleman5340b700june93stendahl

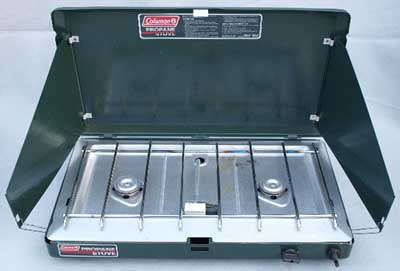

Model 5340B700 stove is date stamped June 1993.
This stove is in John Stendahl’s collection.

coleman9950750lplanternring coleman9960750lplanternring

PowerMax lantern Model 9950-750 (left) and PowerMax Quick-Pack lantern Model 9960-750 only appeared in the 1999 and 2000 product catalogs. PowerMax fuel, which is no longer available, was a “High Performance Fuel” mix that included propane and butane. Both featured matchless lighting and adjustable light output. The plastic globe shield for the lantern on the right is not in the image. The fuel canister for the lantern on the left was inserted under the valve. These lanterns are in Pat Ring’s collection.

colemanmaxfuelcan6ozring colemanmaxfuelcan10.6ozring

Coleman Family Max camping lanterns (above) and stove (below) powered by Max Fuel provided excellent cold weather and high altitude performance but less then desirable run times and candle power.  The Family appliances were discontinued, however the fuel production continued for the high performance Xponent backpack appliances below. These unused canisters are in Pat Ring’s collection

coleman9920lpgrillstovering

This PowerMax Grill Stove took two PowerMax canisters, inserted underneath and from behind, to run the 10,000 BTU stove burner on the right and the 10,000 BTU grill on the left. The 145 sq. in grill had a non-stick coated surface. This grill stove, also in Pat Ring’s collection, was made in the same period as the PowerMax lanterns above. It also featured “automatic matchless lighting” and “precise flame adjustment.”

colemannorthstarpropanelanternspage

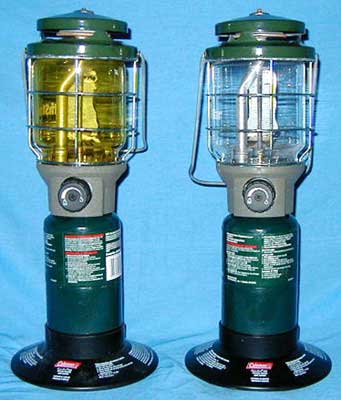

The Northstar lantern, Model 2500-750G,
is the current top of the line propane lantern.
The one on the left with the amber globe is dated July ’02
and the one on the right with the clear globe is dated Jan ’02.
The lanterns, in Brien Page’s collection,
feature electronic ignition and produce 550cp from the tubular mantle.

coleman9400propanestovepage

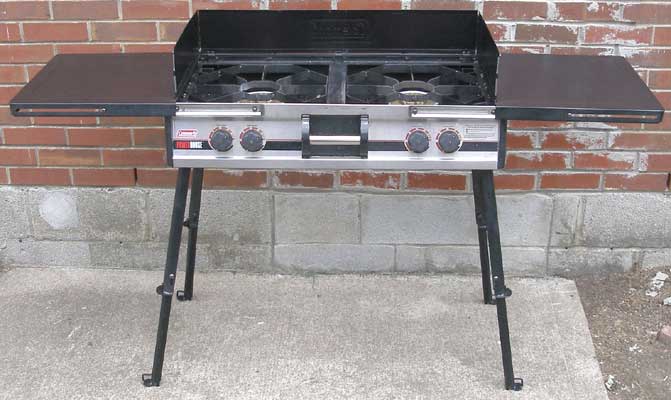

This Model Coleman 9400 propane stove is a larger unit that uses 20 lb propane tanks for fuel. Each of the two burners is rated at 100,000 BTU’s.
This stove, in Brien Page’s collection, is date stamped March, 2004
and was made in China but was designed and engineered in Wichita, Kansas.

coleman9970runningrugotzke coleman9970reflectorrugotzke coleman9970globeprotectorrugotzke

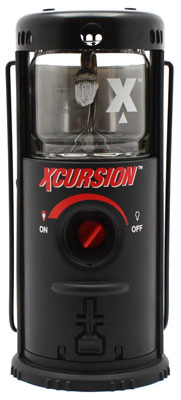

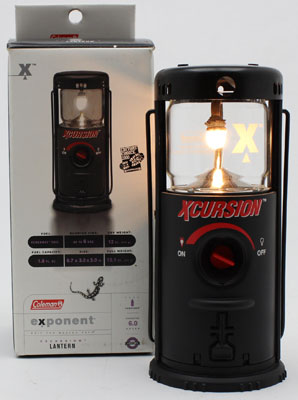

Coleman’s Exponent Excursion lantern 9970-725 was assembled in China.
This 10 cp lantern uses Powermax fuel which is no longer produced.
The lantern requires a match to light and will run for 6 hours.

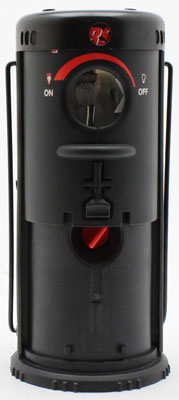

The lantern has a sliding rear reflector (middle image) and sliding front globe protector (right image). The box is dated October, 2004.
This lantern is in John Rugotzke’s collection.

coleman9975runningrugotzke coleman9975rugotzke

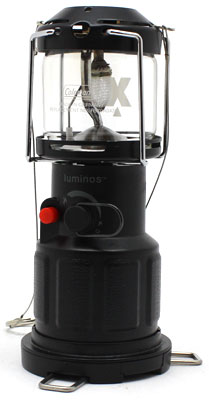

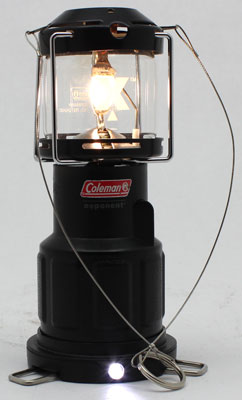

Coleman’s Model 9975 Exponent Luminos
is undated but probably was made after Model 9970 above.
This model is lighter, includes electronic ignition and a small flashlight in the base (left image), has 3 folding legs, and a cable hanger rather than a fixed wire as on the above model. It also uses the discontinued Powermax fuel.
This lantern is in John Rugotzke’s collection.

coleman9933propaneskilletpage

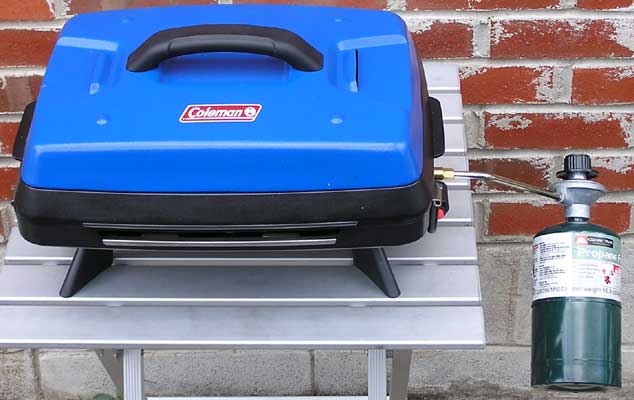

Brien Page reports that this Coleman Model 9933 propane skillet
does a great job of cooking eggs, sausage, bacon,
and everything else they have tried on camp outs.

coleman5156700lanternandboxlunney

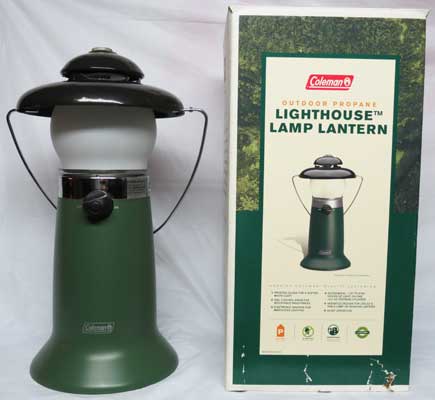

This Coleman Model 5156-700 Lighthouse Lamp Lantern,
in Ken and Carol Lunney’s collection, is undated
but the box indicates it was made in 2001 and has Patents Pending.
This model uses a standard propane cartridge and 21A mantle (Corey).

colemanbutanelamp9981-750drake

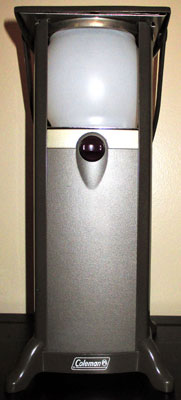

This butane fueled Model 5156-750 is from the same series
and time period as Model 5156-700 above (Corey).
The lamp differs from Model 5156-700 in using butane cartridges
and takes the same #9970 mantle as Excursion lanterns.
The butane cartridges were discontinued around 2005.
This lamp is in Ron Drake’s collection.

coleman5157runningmarsh colemanbutanepatiolightpage

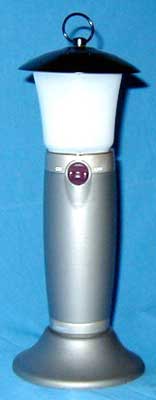

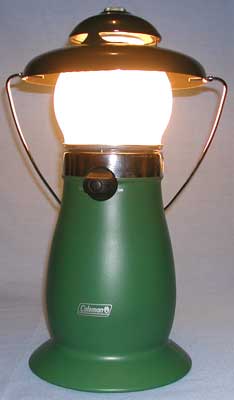

Coleman’s Serenade Model 5157 propane table lamp (left)
and Model 9980-750 butane patio light (right) followed model 5156 above.
Both feature electronic ignition and
reflective conical heat shields
that helps reflects light, frosted globes, and black enamel ventilators.
The light on the right is in Brien Page’s collection.

coleman2600pinnaclelanternpage

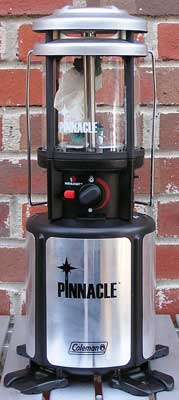

Coleman introduced the 2600 Series pinnacle lantern in 2005.
This lantern, in Brien Page’s collection,
uses a 16.4 oz. propane cylinder
has electronic ignition, and is 550 cp.
The top of the lantern stores inside the base when the fuel bottle is removed.

colemannorthernnova2555potter

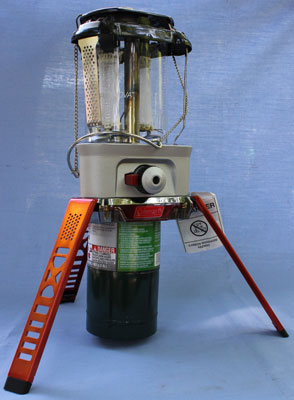

This Northern Nova Model 2555 Coleman propane lantern
uses two #95 mantles and is Coleman’s brightest current lantern model (October, 2017),
producing nearly 240 cp at its highest setting
to a distance of 32.5m away, per their website.
The lantern, in Steve Potter’s collection, features electronic ignition
and adjustable fuel flow to control brightness.
