Coleman Canada lanterns 1971 – 1993

colemancanadian220f

The Canadian version of the 220F was not produced in large numbers.
The Canadian version has several differences from the US version above
including the “dot-dash” collar and the ventilator air vents.
This lantern, dated Feb. ’71, was in Matt Reid’s collection.
His restoration included bead blasting the globe cage and repainting with silver paint,
repainting the fount, and applying a reproduction sticker.

coleman335redjune70reid

Coleman Toronto made their Model 335 in red in June, 1970
as this lantern, in Matthew Reid’s collection.
This lantern came with the box which is also printed in red,
rather than the usual green for this model.
The globe is marked Coleman, Colex (with the sunshine logo),
No. 4, Made in England.

colemancanada335nov70runningmarsh

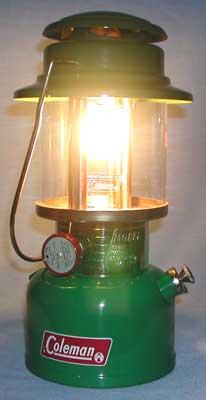

Many Model 335 lanterns finished in green
were produced in the 1970’s by Coleman Toronto.
This lantern is date stamped November, 1970.
This model replaced the popular Model 200
and was rated at 350 cp.

coleman635ni

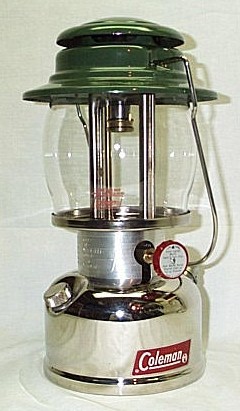

A common Canadian Coleman model is the 635.
This one is unusual because it has a nickel plated fount
rather than the usual green paint.
The 635 burns white gas and is rated at 500 cp.
This lantern is in George Rocen’s collection;
the fount is dated Feb. ’72.

coleman321mar73reid coleman321mar73labelsreid

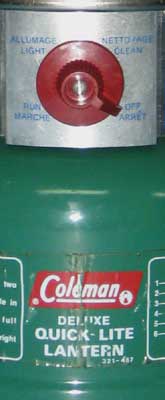

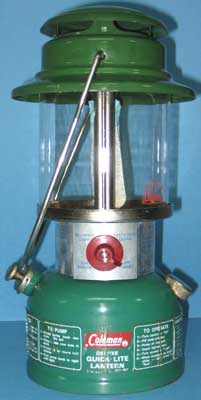

Canadian Model 321 Deluxe Quick-Lite was the first Coleman model
to use a Schrader valve (image below – 5 with spring)
to control the fuel/air flow to the generator.
This earliest lantern in the 321 series, date stamped March 1973,
is in Matthew Reid’s collection.

coleman321valvepartslabeledreid

When the valve in the above lantern is partially opened (1), the eccentric block (4) is raised causing the generator orifice to be cleaned; further opening of the valve now pushes the block beneath the eccentric down from the force of the spring (5) in the Schrader valve that is contained in the fuel air tube (6).
The Schrader valve wire is reduced in diameter near the bottom (not visible here) to allow varying amounts of fuel past according to the valve’s position. The valve is restricted to a 270 degree turn by (2); the valve body (3) is held in place on the fount by the nut above (5).

easilitelabelschevalier500s

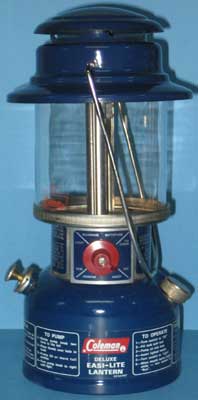

colemancanada321july74laramee

Canadian Model 321 Deluxe Easi-Lite lantern
with a blue painted fount and blue enameled ventilator
followed the Model 321 Deluxe Quick-Lite in green above.
This Easi-Lite version of the 321 lantern is date stamped July 1974.
This lantern, in Ken Laramee’s collection,
has the same valve assembly as the green Deluxe Quick-Lite Model 321 above.

colemancanada621jan74chevalier

Model 621 Easi-Lite lantern is a 550 cp model.
This one, in Roland Chevalier’s collection, is dated Jan ’74 as is the Model 321 above.
However, this lantern has a different fuel feed system
that includes a redesigned central fuel rod
and larger Schrader valve to control the fuel rod (Chevalier & Dyke).

coleman339jan1975colston colemancanada339189burnerchevalier

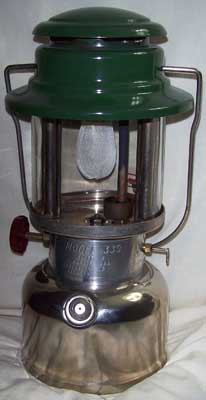

Model 339 was a 350 cp lantern model
comparable to Model 335 above but kerosene fueled.
The lantern on the left, in Don Colston’s collection, is date stamped January 1975.
The height of the lip on the frame base plate was reduced by January ’89
when the 339 on the right was made.
This lantern is in Roland Chevalier’s collection.

colemancanada331jan78garry

This Easi-Lite lantern Model 331 was made in the late 1970’s.
This 350 cp single mantle lantern exhausts heated air between the top of the globe
and the underside of the ventilator, which lacks the usual holes in the cap.
Brackets on the underside of the vent keep the globe in place
as well as providing the exhaust space.
This lantern, in John Garry’s collection, is date stamped Jan ’78.

coleman621arunningmarsh cole621bbuilt278 colemancanada621bblue278miao

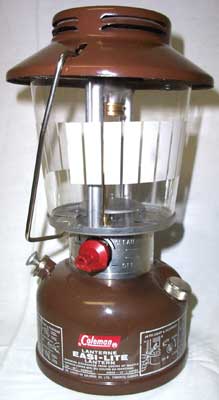

Easi-Lite Coleman Models 621A (left) dated Jan. 1976, 621B (center) dated Feb. 1978,
and another 621B in blue that is also dated Feb. 1978 (right).
These Canadian models have a single mantle, use white gas, and are rated at 550 cp.
The globe on the lantern on the left is a replacement. The lantern in the center is in Matt Reid’s collection and the one on the right is in Ling Miao’s collection.

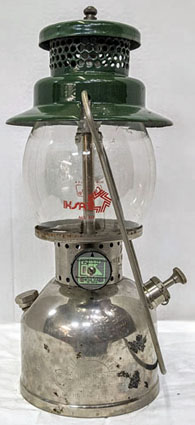

colemanikmexico242b24erb

This Model 242B lantern was built under license from Coleman
by Industrias Kolmex S.A., Mexico City, Mexico (Leonardo Occelli).
This lantern is embossed with the Coleman model number on the collar
and is stamped M.I.R., Hecho en Mexico under the Sunshine logo on the fount.
This lantern is in a Coleman museum in Sugarcreek, Ohio.
Industrias Kolmex also made a Coleman branded propane lantern.

ikcolemanrunningmarsh ikcolemandirectiondiskmarsh

This lantern in the style of Model 236 was also built under license from Coleman
by Industrias Kolmex S.A., Mexico City, Mexico (Leonardo Occelli).
This lantern has the remains of a Coleman sticker on the fount (left image)
and directions in Spanish on the direction disk (right).
The filler caps on this lantern and the 242B above have hexagonal tops.
This lantern is in a Coleman museum in Sugarcreek, Ohio.

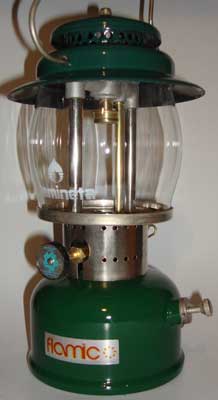

colemanflamic236occelli

This lantern, also in the 236 style, was made by Flamic,
a branch company of Industrias Kolmex.
The globe is marked Flamineta, a Mexican company
that succeeded Industrias Kolmex,
that still makes commercial LP appliances, globes, and mantles.
This lantern is in Leonardo Occelli’s collection.

colemancanada335p671and278mcgee

colemancanada335p671burnermcgee colemancanada335p278burnermcgee

UK collector Sean McGee owns these 335P lanterns
date stamped June, 1971 (left) and February, 1978 (right).
Model 335P was the plated fount version of Model 335
and apparently produced for export.

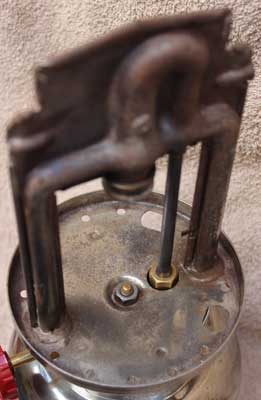

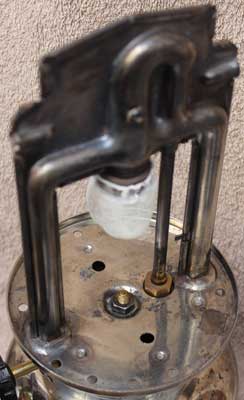

The frame base plates (lower images) were also used on 321 series lanterns;
all have the reduced lip on the frame base plate after the mid-1970’s.

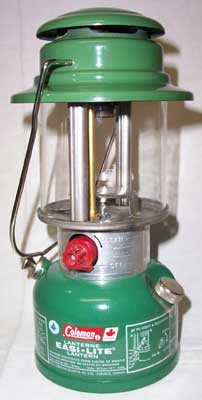

cole321bbuilt279 cole321cbuilt183

Canadian Coleman Model 321 – here the B version (left) dated Feb. 1979,
and the C version (right) dated Jan. 1983.
The difference in these versions is in the fuel valve assemblies.
These lanterns are in Matthew Reid’s collection.

colemancanada621d183delcoro

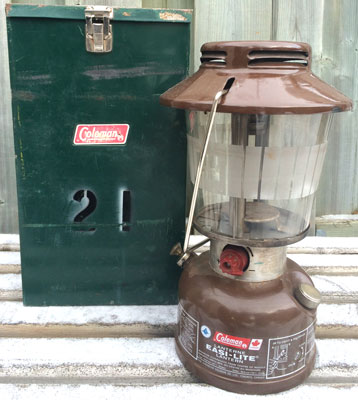

In the 1980s Canada’s National Defense bought
Coleman 621D lanterns and metal cases for military use.
This 621D, in Agostino Del Coro’s collection, is date stamped January 1983.
This 550 cp rated model uses an O-ring
to regulate the fuel air mix to the burner assembly.
There is a heat shield above the frame base plate.

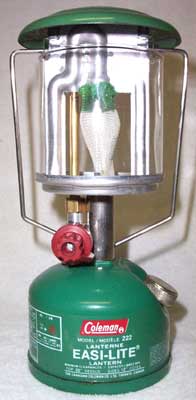

cole222281 coleman222a184runningkokonas

colemancanada222a-ltgr184chevalier cole222b0295

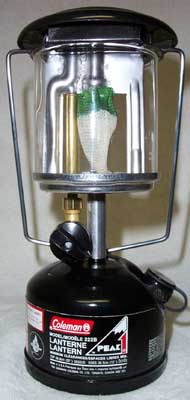

Four Canadian 222 series backpacking lanterns.
Easi-Lite Model 222 (upper left) is dated Feb. ’81 and is in Matthew Reid’s collection,
Peak 1 Model 222A finished in black (upper right) is dated Jan. ’84 and is in David Kokonas’ collection, another 222A, finished in green, (lower left) is also dated Jan. 84 and is in Roland Chevalier’s collection, and Peak 1 Model 222B (lower right) is dated Feb. ’95 and is in Matthew Reid’s collection.
These 125 cp lanterns are only 9.5″ tall.

colemancanada182fuelsystemmarsh

Coleman further simplified the fuel-air delivery system
from a Schrader valve (higher on this page) to a fluorosilicone O-ring.
The O-ring to the left of the letter A accomplishes this
while the O-ring above the A keeps fuel from leaking past the valve.
As O-rings wear with time, they need to be periodically replaced.
These parts are in a Model 222 dated January 1982.

coleman639running71dodge coleman639jan76reid

colemancanada639cprail178ogilvie colemancanadacpr639feb82rocen

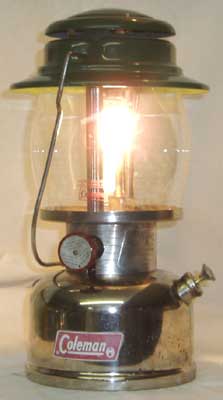

Canadian Coleman Model 639, kerosene fueled and rated at 500 cp, was made for the the public (upper) and the Canadian Pacific Railway (lower). The nickel plated fount version (upper left), dated Feb. ’71, is in Monte Dodge’s collection. The more common green painted fount version (upper right), dated Jan. 76, is in Matthew Reid’s collection. The lantern on the lower left, in Mike Ogilvies collection, is dated Jan. ’78 and has never been used. The lantern on the lower right, in George Rocen’s collection, is dated Feb. ’82 and has never been used. Model 639 replaced the earlier Model 237.

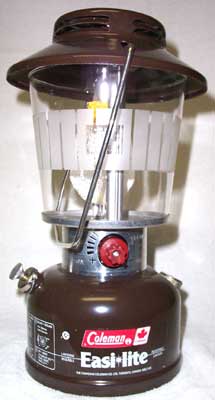

cole625284 colemancanada625a289delcoro

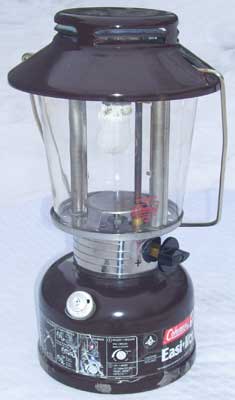

Canadian Coleman Models 625 (left) and 625A (right) are single mantle 500 cp lanterns.
The lantern on the left, in Matthew Reid’s collection,
includes a mantle that is correct to the period of manufacture, which is Feb. ’84.
The lantern on the right, in Agostino Del Coro’s collection, is dated Feb. ’89.

coleb325built187 cole325abuilt188

The Canadian Coleman model series 325 (left) and 325A (right)
was a successor to the 321 series.
These two models differ in fuel valve knobs and their internal assemblies
as well as color.
The 325 is dated Jan. 1987 and the 325A is dated Jan. 1988.
The two lanterns are in Matthew Reid’s collection.
